BT-16HD(Gen 2)
Capture Your Life Inspiration.
A masterpiece is a collection of countless inspirations.
A Great Tool for A Great Creation.

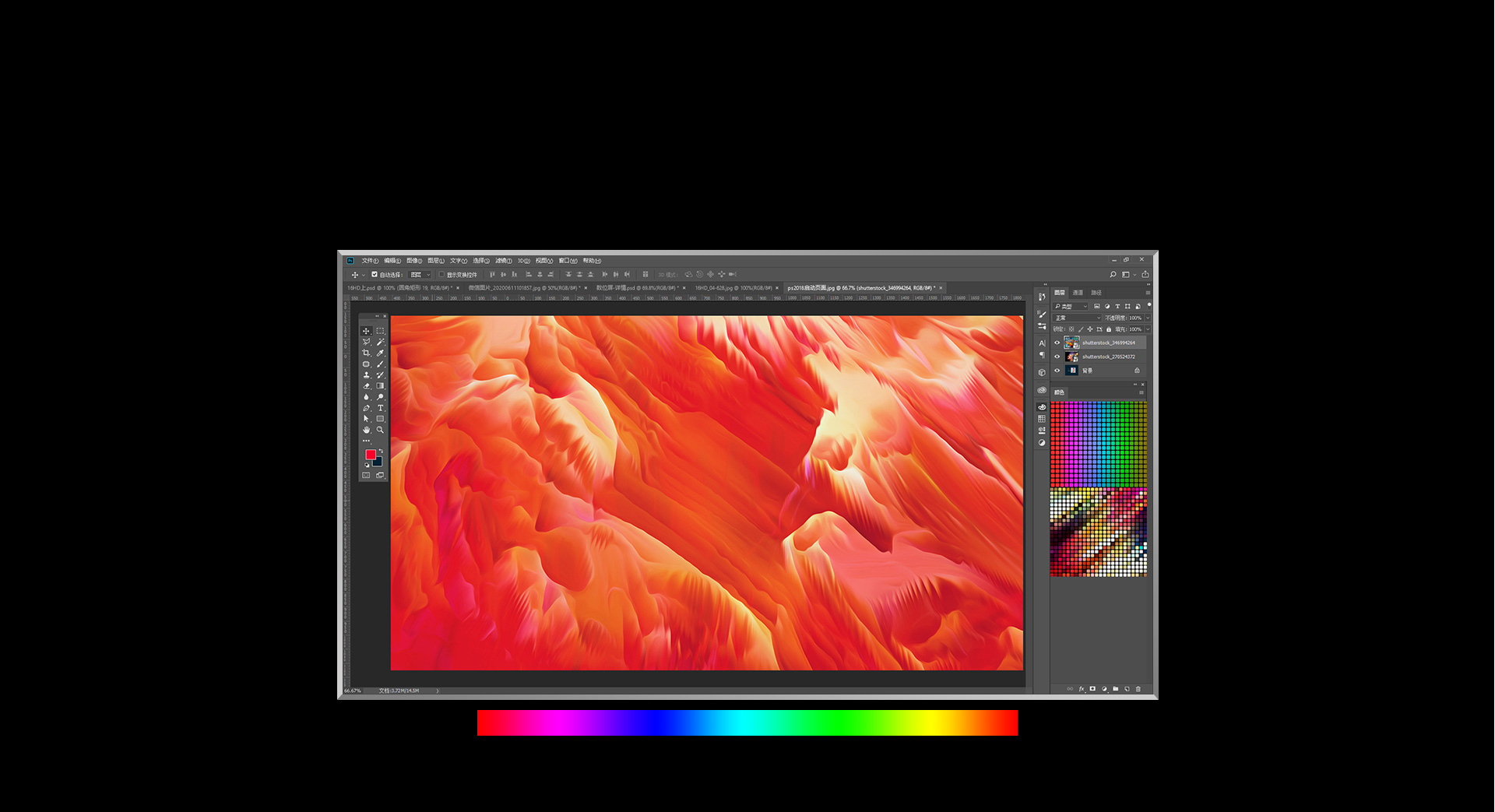

See Every Sight of Color Clearer.
A Rich Color Gamut is Ready for Your Brilliant Painting.
120% sRGB
IPS High-definition
Screen Immerse You
in the Drawing
Experience.
178° wide viewing angle, clear picture quality without color cast

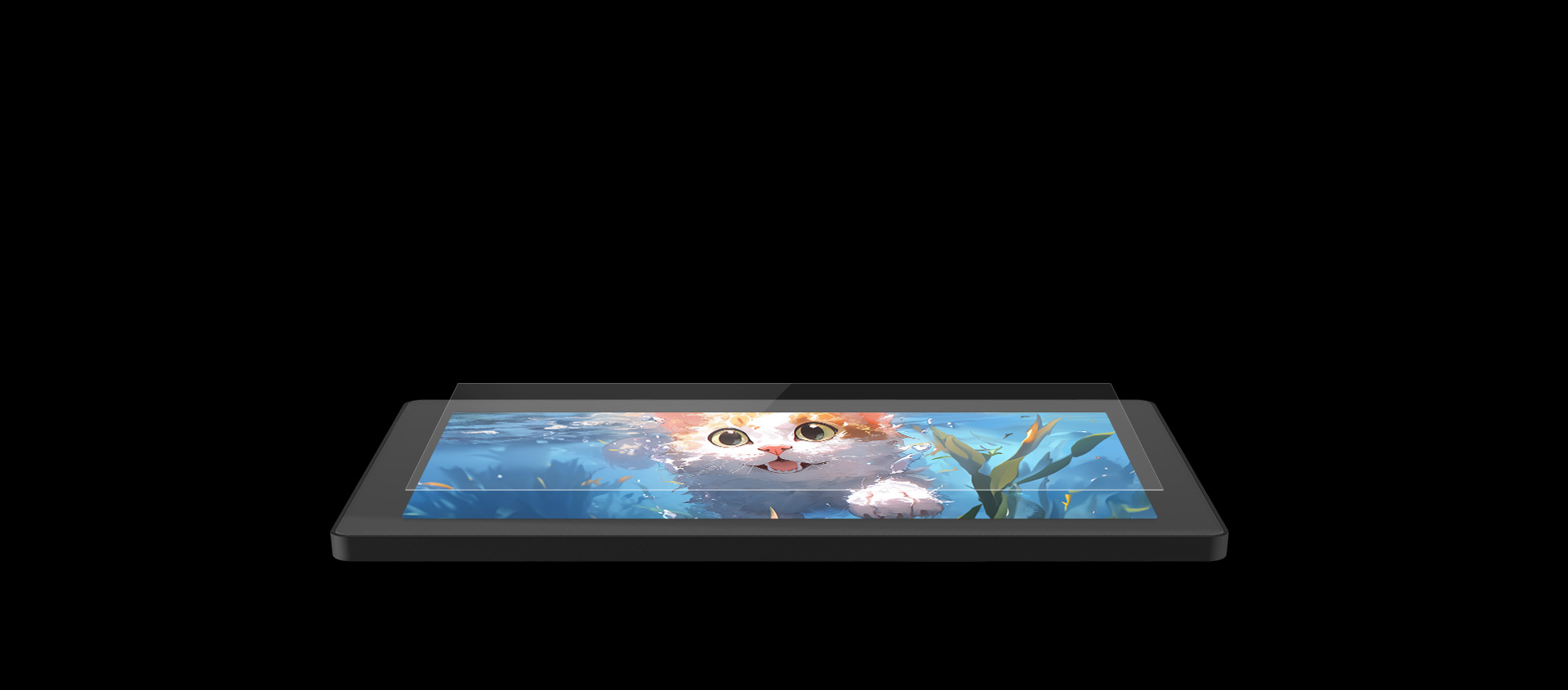

High lightTransmission Toughened
Glass Design, Seamless Fit.
Restore Colors and Precise Positioning

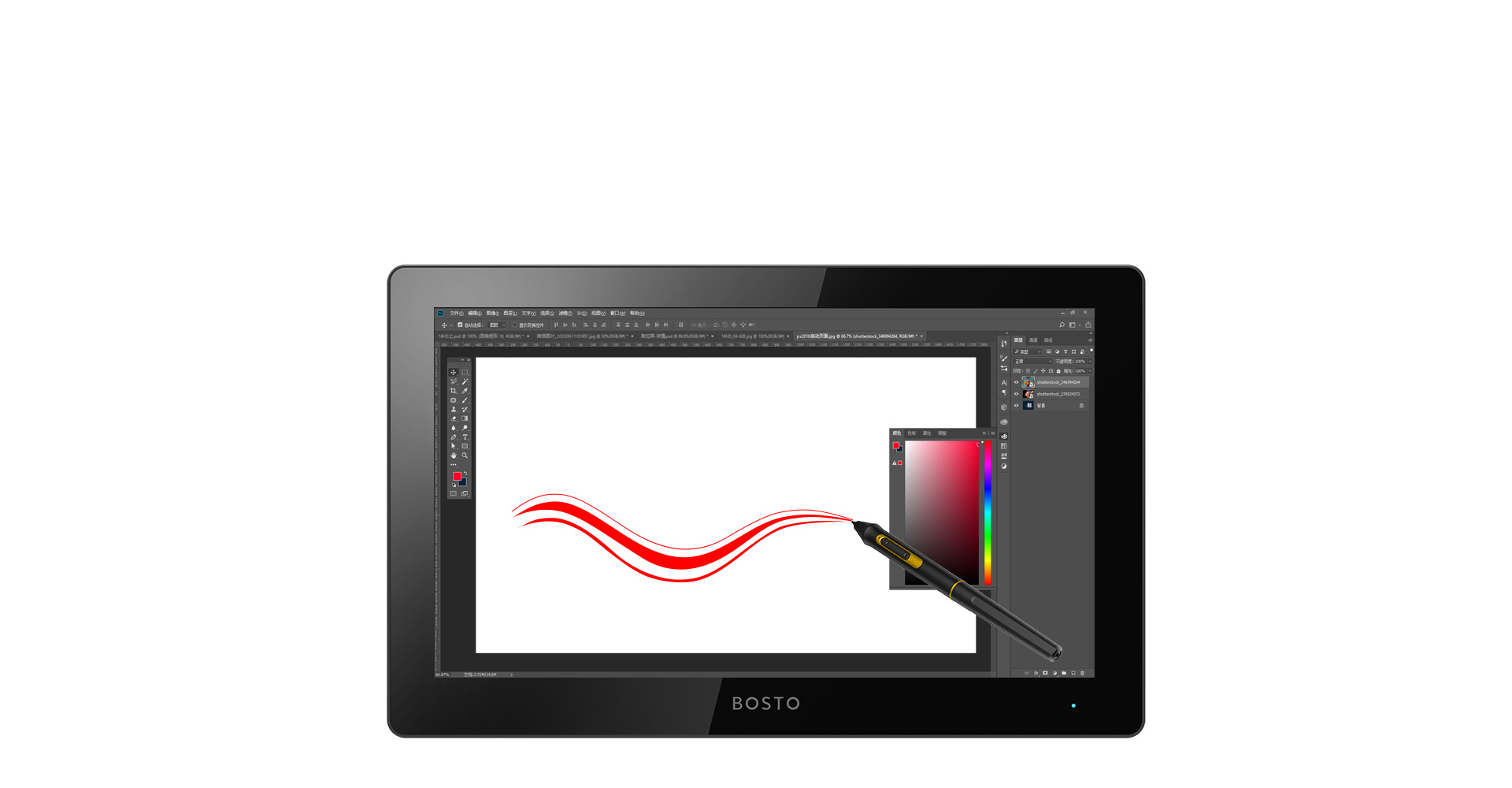

Batter-free Pen.
A pen needs no wire and charge
16384 levels Pressure Sensitivity.
The pen draws different lines at different inclination angles to make the painting more rich
Smooth Lines
No delay, no lag.
10mm Sen
singHeight
土60 Tilt
Recog nition
8 Shortcuts Keys Assist
Your Drawing Experience.
The 8 Shortcuts Keys on both side is designed for both left-right handed users

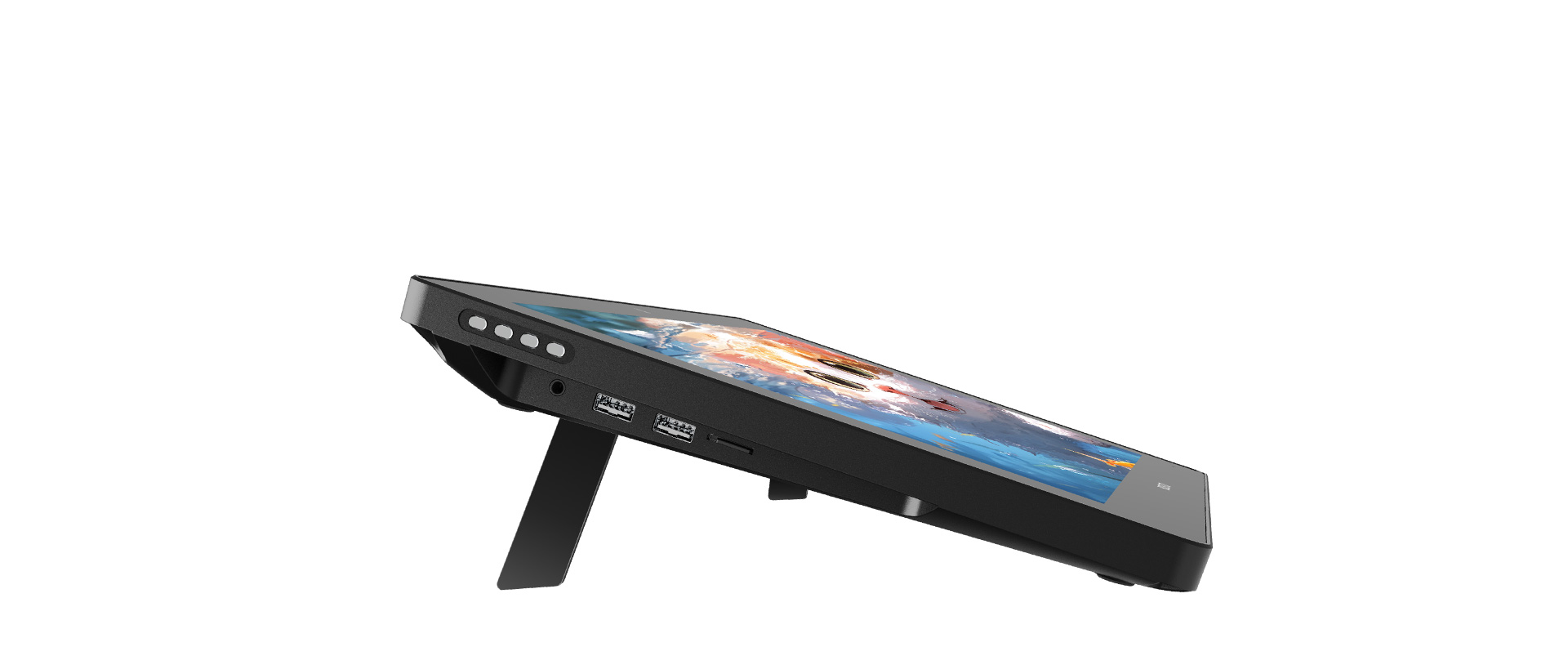

Foldable metal standuse freely
Adjustable bracket 19
BOSTO BT-16HD(Gen 2)
| Product Model | BT-16HD(Gen 2) | Size | 15.6 Inch |
| Sensing Height | 10mm | Pen | Battery-free Pen |
| LCD mode | H-IPS LCD Screen | Stylus Tech | Electromagnetic, Pressure-sensitive, cordless |
| Resolution | 1920*1080(16:9) | Resolution | 5080 LPI |
| Pen Pressure | 16384 Levels | Tilt Sensing | ±60° |
| Number of Colors | 16.7M | Operation Type | Passive pen and touch |
| Warranty Period | 12 months | Pen Button | Custom Buttons |
| Interface | TYPE-C+HDMI | Battery | No Battery |
| LCD display mode | IPS hard screen | Color Gamut | 92%(NTSC) (120%sGRB) |
| Reading Speed | 266 reports per second | Viewing Angle |
178°(89°89°)H,(89°89°)V |
| Brightness | 250cd/m2 | Accuracy |
±0.25mm(Center) ±2mm(Corner) |
| Response Time | 25 ms | Contrast Ratio | 1000:1 |
| Buttons | 4 buttons on the right side | Screen Power Consumption | 5W |
| Technology | electromagnetic induction technology | Input Voltage | 5V |
| Nib | 10 nibs | Product Size | 406x253x30cm |
| Reporting Rate |
233PPS |
Screen Size | 345x195mm |
| System Required | Windows 7 or above,Mac OS10.11 or above | Pen Display Net Weight | 1.35kg |
