BT-16HD(T) Pro
Draw What You Want.
Seek a paintpath of yours.
15.6 Inch Fully Laminated Film
Dial Encoder--Make Your Work Easier
Easily Connect
to A Computer.
Two in one cable makes you no need
to plug the power cord additionally.
Comfort Your Painting Experience.
Ergonomic design and non-slip application provide you with the best painting angle.
Just Enjoy
Your Creation.
Two in one cable makes you no need
to plug the power cord additionally.
Drawing Courses.
The courses are provided for both amateur and professional.
Supported System
Mac/ Windows
High-deatie nsital screen
Two-in-one connection to the computer to draw

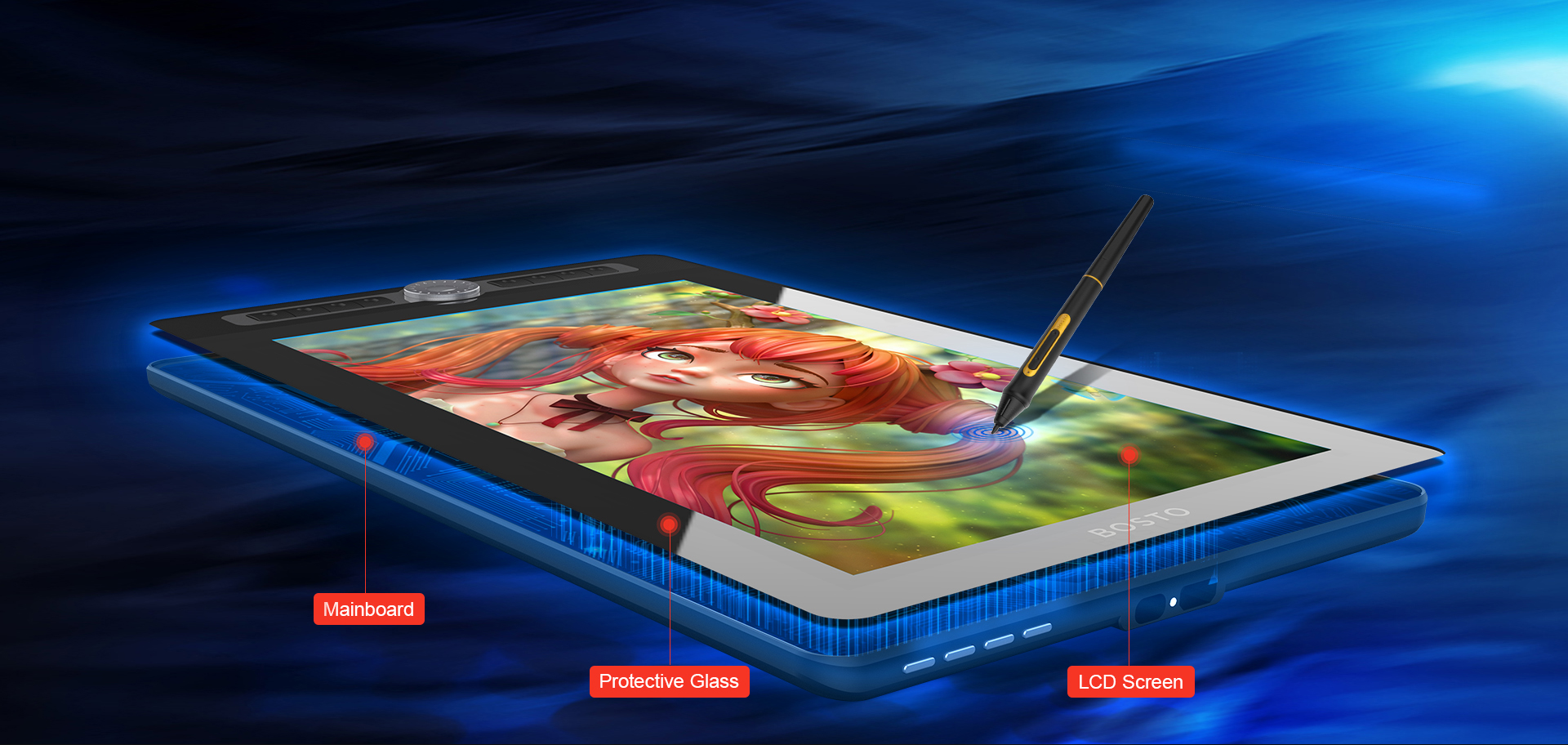

Clearer Details, More Focus.
Application of fully Laminated film lets you view clearer and makes no deviation between pen tip and the cursor.
No Deviation between Pen Tipand the Cursor.
There is basically no parallax between the pen tip and the cursor, the pointing is more accurate,
the light transmission is better, and the overall feeling is stronger.
The screen is not easy to accumulate dust.

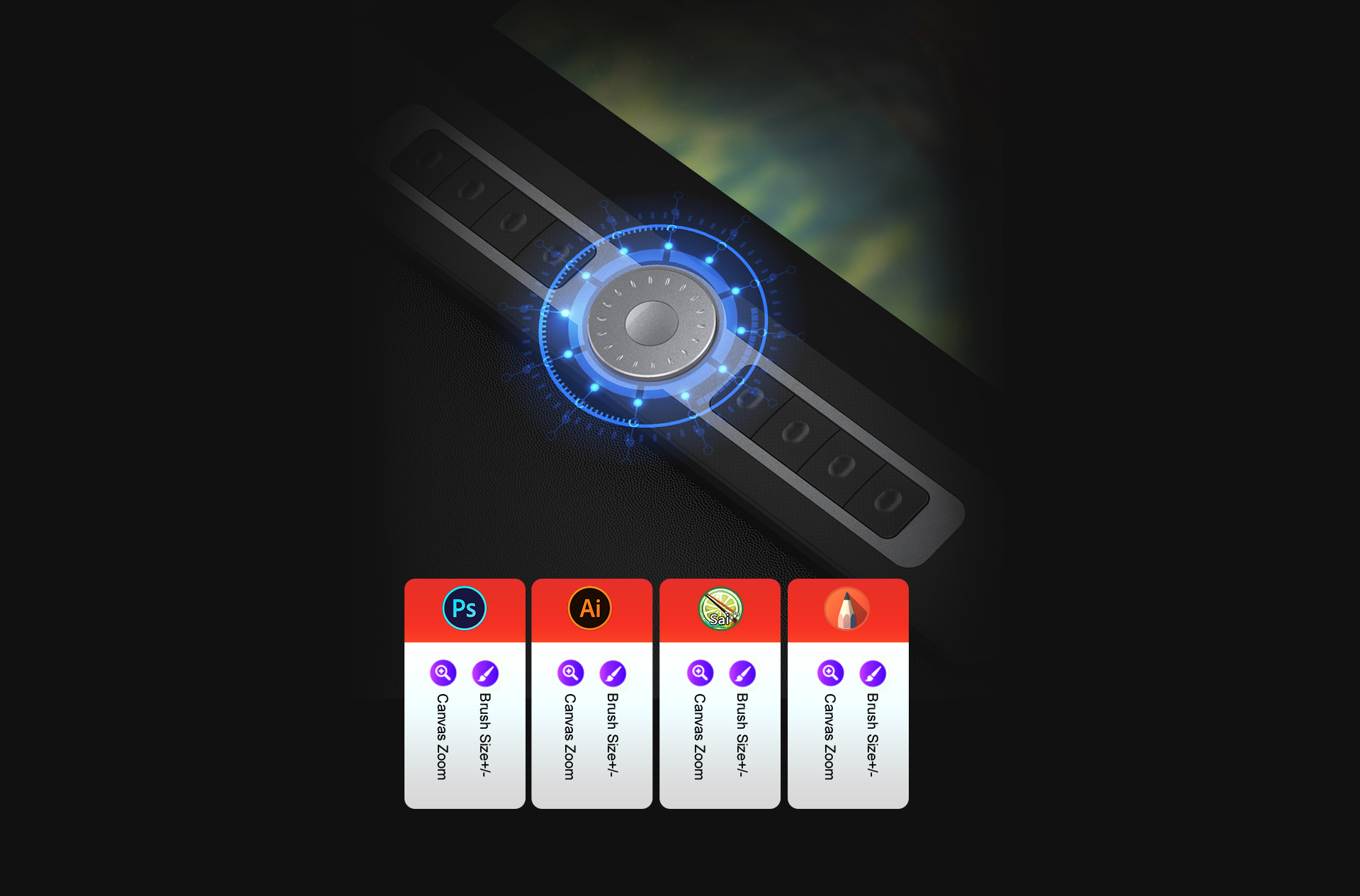

Let the Scroll Wheel Assist Your Creation.
Only with Windows 10 or above, wheel can be available.
9 Shortcuts Keys MakeYou Work More Efficient.
8 Keys+ Dial Encoder can be personalized after the driver installation.
Tilt Recognition,Good for Handwriting.
The pen display is suitable for your different brush angles during your creation.
16384 Levels Pressure Sensitivity 120%sRGB Color Gamut.
More Color,Rich Layers.
266PPS Report Speed.
The pen display accurately senses the position of the pen tip to make the lines smoother
BOSTO BT-16HD(T) Pro
| Product Model | BT-16HD(T) Pro | Size | 15.6 Inch |
| Sensing Height | 10mm | Pen | Battery-free Pen |
| LCD mode | H-IPS LCD Screen | Stylus Tech | Electromagnetic, Pressure-sensitive, cordless |
| Resolution | 1920*1080(16:9) | Resolution | 5080 LPI |
| Pen Pressure | 16384 Levels | Tilt Sensing | ±60° |
| Number of Colors | 16.7M | Operation Type | Passive pen and touch |
| Warranty Period | 12 months | Pen Button | 2 Custom Buttons |
| Interface | TYPE-C+HDMI | Battery | No Battery |
| LCD display mode | IPS hard screen | Color Gamut | 92%(NTSC) (120%sGRB) |
|
Reading Speed |
266 reports per second |
Viewing Angle |
178°(89°89°)H,(89°89°)V |
|
Brightness |
250cd/m2 |
Accuracy |
±0.25mm(Center) ±2mm(Corner) |
| Response Time | 25 ms | Contrast Ratio | 1000:1 |
| Buttons | 8 Keys+ Dial Encoder | Screen Power Consumption | 5W |
| Technology | electromagnetic induction technology | Input Voltage | 5V |
| Nib | 10 nibs | Product Size | 439x254x15mm |
| Reporting Rate |
233PPS |
Screen Size |
345x195mm |
| System Required | Windows 7 or above,Mac OS10.11 or above | Pen Display Net Weight | 1.44kg |
