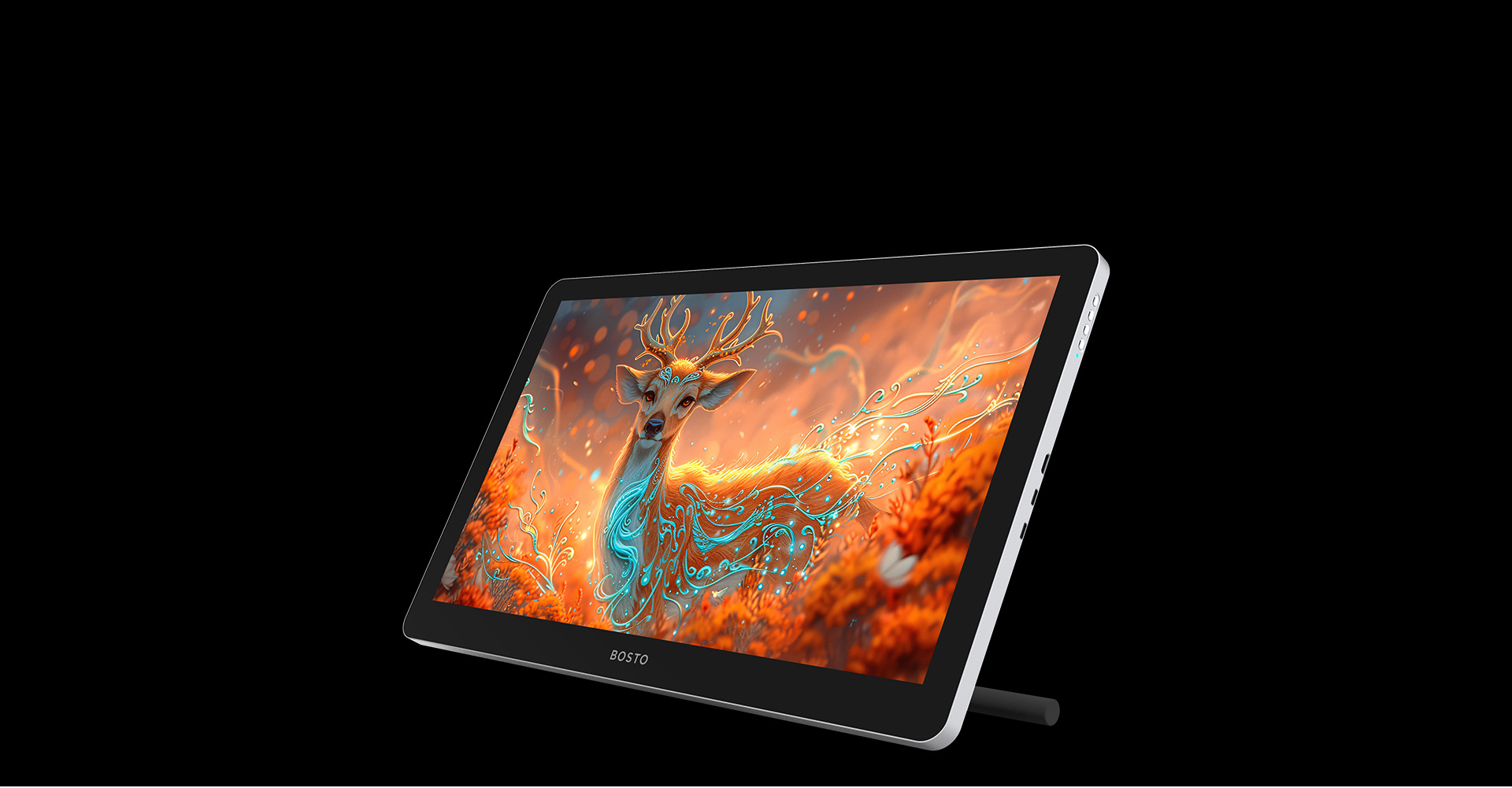

BT-19UHDT（P/M）
4K Ultra HD True Color Screen Providing clearimages, delicate and realistic
The ideal tool for CG creativity, IPS digital screen, Originality&Creation
Work Together Seamlessly
18.4 Inch
Working Area
Visual Angle 178°, multi-angle color view without deviation, 16384 levels pressure，concentrate more easily on your creation!
Professional Digital Painting,
Large-size Screen
3840*2160 resolution, more high-definition, intuitive painting method,
just like painting on paper, creative on the screen more freely
Sensitive
Electroma
gnetic Pen
The newly upgraded electromagnetic pen, 16384 pressure, handle all kinds of complicated lines easily, draw smooth and full lines with ease
Compatible with a Wide Range of Applications
Compatible with a variety of graphic design software, support
MAC and Windows twosystems, equipped with mainstream
video interfaces such as DVI,HDMI,VGA
16384 levels Pressure Sensitivity.
The pen draws different lines at different inclination
angles to make the painting more rich
BOSTO BT-19UHDT(P/M)
| Product Model | BT-19UHDT(P/M) | Size | 18.4 Inch |
|
Sensing Height |
10mm |
Support |
BT-19UHDT(P) ： Tilt 5°~35° BT-19UHDT(M) ： Tilt 20°~80° |
| LCD Type | H-IPS | Stylus Tech | Electromagnetic, Pressure-sensitive, cordless |
| Resolution | 1920*1080(16:9) | Resolution | 5080 LPI |
| Pen Pressure | 16384 Levels | Tilt Sensing | ±60° |
| Number of Colors | 16.7M | Operation Type | Passive pen and touch |
| Warranty Period | 12 months | Pen Button | 2 Custom Buttons |
| Interface | TYPE-C+HDMI | Color Value | 10.7B(8bit+FRC) |
| LCD display mode | IPS hard screen | Colour gamut | 150%sGRB |
|
Reading Speed |
266 reports per second |
Viewing Angle |
89%/89°(H)/89%/89°(V) |
|
Brightness |
250cd/m2 |
Accuracy |
±0.25mm(Center) ±2mm(Corner) |
| Response Time | 14 ms | Contrast Ratio | 1200:1 |
| Express Key | 4 pcs | Screen Power Consumption | ＜10W |
| Technology | electromagnetic induction technology | Input Voltage | 5V 3A |
| Nib | 10 nibs | Product Size | 452 x278x 14mm |
|
Reporting Rate |
>260PPS |
Screen Size |
409 x 230mm |
| System Required | Windows 7 or above,Mac OS10.11 or above | Pen Display Net Weight | 2.20kg |
